Vivid Hybrid
Multi Skinned Skylight

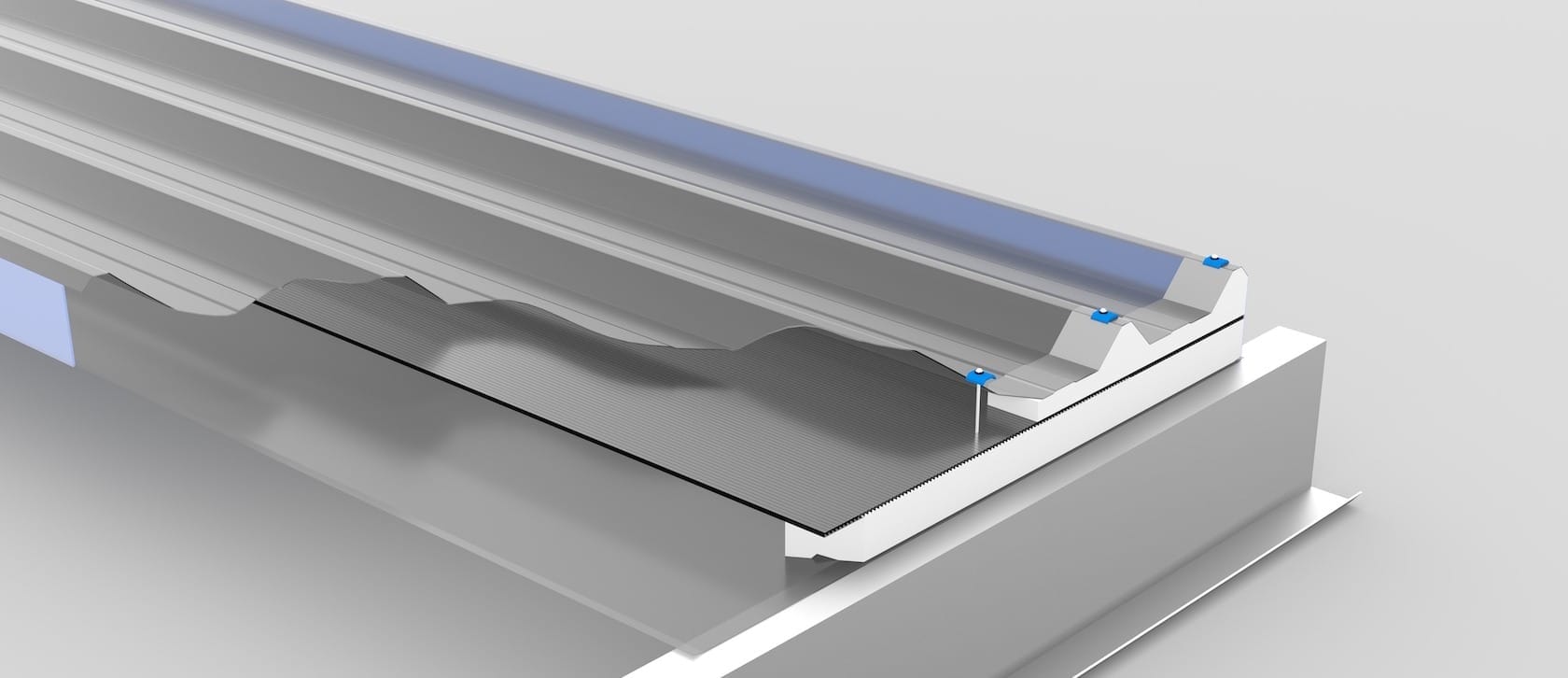

Domer Vivid Hybrid Panel
is an innovative factory-assembled skylight panel made of glass-reinforced fiber with an internal thermal layer, providing high levels of diffused natural light into the building, with an excellent thermal insulation performance, designed to match any composite roofing panel furthermore vast project requirements.
Its optimal thermal insulation performance delivers U-Value as low as 0.8 W/Km2, high levels of quality daylight, and durability make our Domer Vivid Hybrid panels the ideal choice for your industrial or commercial building.
Applications:
- Rooflights
- Wall lights
- Sports centers
- Warehouses
- Showrooms
- Industrial Buildings
Fire Classification and Durability
The fiberglass corrugated panels are co-extruded with UV reflective layer to protect the panel against discoloration and yellowness,
Domer Vivid Hybrid is available in different fire retardant classifications conforming to the American Standard ASTM E84 or British standard BS476-7 achieving the highest possible classification.
Domer Vivid Hybrid provides diffused natural daylight into the building, ensuring the light distribution in the space without shadows or hotspots. Besides, Domer Vivid Hybrid has an outstanding thermal insulation performance that provides energy saving to the building while promoting natural daylight.
Product Benefits:
- High light transmission
- Lightweight and easy to install
- “UV Premium” or UV Platinum resistant layer
- Outstanding thermal insulation
- High impact resistant
- Excellent fire performance
| Product Name | Description |
|---|---|
| Domer Vivid Hybrid | Multi skinned Hybrid translucent thermal panel |
| Domer Vivid Hybrid A | Fire retardant translucent multi skinned Hybrid panel conforming to American Standard ASTM E84 Class A |
| Domer Vivid Hybrid BS | Fire retardant translucent multi skinned Hybrid panel conforming to British Standard BS476-7 Class 1 |
| Domer Vivid Hybrid Platinum | Multi skinned translucent Hybrid panel with Platinum Shield UV resistant Layer |
| Thickness | Length | Width |
|---|---|---|
| 25 - 200mm | No Limit | ≤1500mm |
*customized sizes are available subject to minimum order quantity
| Type | Color |
|---|---|
| Translucent | transparent clear, opal, bluewish, greenish, yellowish, greyish, reddish, orange |
| Finishing | |
|---|---|
| Smooth | Smooth surface |
| Embossed | Embossed surface |
*Colors and Finishes can be customized subject to minimum order quantity
| Properties | Domer Vivid PS |
|---|---|
| Operating Tempreture | -20C to 80C |
| Flexural Modulus | 7700 Mpa |
| Flexural Strength | 276 Mpa |
| Tensile Modulus | 9190 Mpa |
| Tensile Strength | 137 Mpa |
| Density | 1475 kg/m3 |
| Profile | Profiles can be custom made upon request |
| Product Code | Light Transmission | U-Value |
|---|---|---|
| Domer Vivid Hybrid 2R6 | 55% | 1.3 W/m2K |
| Domer Vivid Hybrid 5R8 | 50% | 1.0 W/m2K |
| Domer Vivid Hybrid 5R12 | 48% | 0.9 W/m2K |
| Domer Vivid Hybrid 8D25 | 40% | 0.8 W/m2K |
*Further combination can be customized upon request
browse what can be done using our products
Our diverse portfolio represents decades of experience backed by a passion for quality, outstanding client service, and the latest industry technologies.
Roof Skylight
Area
Roofing
Suggested Product
Vivid, ContiRoof, ContiVault, SkyDome
Material
Polycarbonate, GRP, Hybrid
Type
Corrugated, Structured MultiWall, Vaulted
Glazed Wall
AREA
Wall
SUGGESTED PRODUCTS
ContiWall, ContiRoof, Durapoll PS, Multipoll, Vivid PS,
MATERIAL
Polycarbonate, GRP
TYPE
Multiwall, Solid, Corrugated
Roofing
AREA
Roof
SUGGESTED PRODUCTS
ContiRoof, Multipoll, Durapoll (PS), Vivid PS
MATERIAL
Polycarbonate, GRP, Hybrid
TYPE
Corrugated, MultiSkinned Structures, Standing Seam
quality products. inspired design.
unparalleled experience. exemplary service.
Common Questions & Answers
What a U-Value means?
U-Value is the thermal transmittance of a product, the unit measurement of W/m2K indicates the rate of the heat transfer through the product.
The better heat-insulated a product is the lower the U-Value will be.
Does Domer Vivid Hybrid come with UV protection?
Domer Vivid Hybrid panels are co-extruded with UV protection layer which eliminates the harmful sun rays, allowing only the healthy light rays to penetrate the building.
Domer Vivid Platinum has a very long life expectancy due to its high-end UV platinum shield layer and UV modified resin, providing a high and consistent light transmission.
Light Transmission reduction of below 12% is expected by 30 years of weathering and exposure to sunlight.
Why is important to have skylights in a building?
Daylight is always associated with improved mood, enhanced morale, and less fatigue. Studies suggest that environments with natural light have a direct impact on increasing the productivity and satisfaction of students and employees. Moreover, introducing daylight into your building will reduce the amount of artificial light decreasing your electricity cost and carbon footprint from 15 to 40 percent.
What makes Domer Vivid Hybrid different than conventional market GRP?
In a nutshell,
- Domer vivid panels long life expectancy due to the advanced UV resistance technology,
- Vivid panels are tough having high tensile strength,
- Exceptional heat insulation without having to compromise the light transmission as much
- Accuracy and consistency of the corrugation as a result of our experienced team and state of the art machinery
- Rigid panel, allowing crown fastener fixing for low slope roofs
