Lumina InLed Solar Tunnel
Solar Powered Tubular Skylight
Lumina InLED Solar Tunnel
Is a solar powered LED integration to the Domer Lumina Tunnel allowing efficient light 24 hours a day.

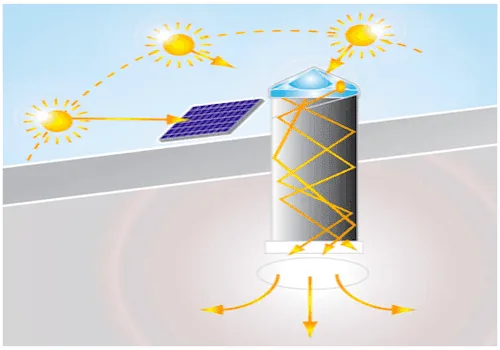

Domer Lumina InLED Solar Tunnel kit is designed to operate during the day in the traditional way to capture and introduce daylight into the space to simultaneously be illuminated during the nighttime.
Domer Lumina Tunnel is an energy-saving sunlight tunnel system engineered to capture the natural daylight through innovative diamond-shaped UV resistant thermoformed polycarbonate and directing the healthy solar rays into the special highly reflective solar tube to provide cozy and natural defused light without transferring the outside heat/cold temperature.
Applications:
- Houses and Offices
- Factories and Industrial Warehouses
- Sports Halls
- Exhibition Pavilions
- Amphitheaters
- Supermarkets
Solar Energy

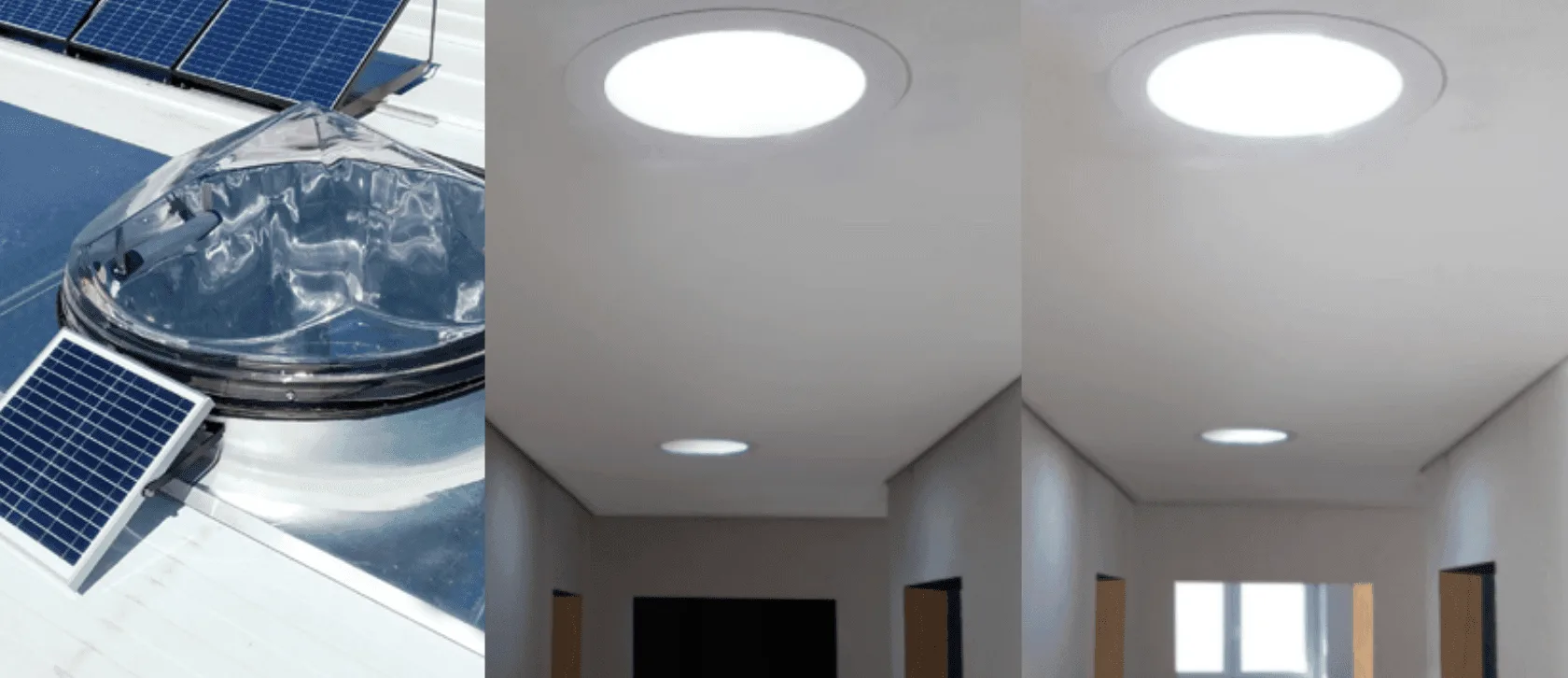

Domer InLED Solar kit includes a photovoltaic panel, lithium battery, and LED lighting completely integrated into the Lumina Tunnel structure, combining modern solar transmission technology with the state-of-the-art LED technology, making it a breakthrough for traditional Lumina Tunnel and traditional lighting, enabling 24-hour interior room lighting to be energy-efficient and durable
All kits are supplied with IR remote control, allowing you to switch on, off, and program operation in various situations and functions.
Product Benefits:
- Architectural Glazing
- Superior lighting compare to conventional skylights
- High impact resistant
- Energy saving
- Engineered air-water tight design
- Easy to install
- Good weather and UV resistant
- Excellent durability
- Wide range of accessories
- 10 years warranty
| Solar Light Tube Model | Diameter (mm) | Length of the tube* (mm) | Clean sky with 120.000 Lux | Clean sky with 85.000 Lux | Sky with clouds with 45.000 Lux | Cloudy sky with 20.000 Lux |
|---|---|---|---|---|---|---|
| measured at 14h | measured at 14h | measured at 14h | measured at 14h | |||
| LT 250 | 250 | 625 | 4.6 | 2.9 | 1.35 | |
| LT 350 | 350 | 625 | 9.4 | 6.7 | 2.9 | 1.3 |
| LT 530 | 530 | 625 | 20 | 13 | 6.35 | 2.5 |
| LT 700 | 750 | 625 | 30 | 24 | 11.62 | 5.3 |
| LT 1000 | 1000 | 625 | 53 | 37 | 24.65 | 8.4 |
| Model | InLED Solar 30 | InLED Solar 50 |
|---|---|---|
| Rechargeable lithium ion battery | 8AH, 3.7V | 18AH, 3.7V |
| Solar panel | 5.2W | 14,3W |
| LED Power | 30W (6.000K) | 50W (6.000K) |
| Applicable to LT models | ≤LT350 | ≥LT530 |
| Dimentions | ||||
|---|---|---|---|---|
| A | B | C | D | |
| LT250 | 600 | 620 | 720 | 150 |
| LT300 | 600 | 620 | 720 | 150 |
| LT350 | 745 | 875 | 845 | 150 |
| LT400 | 745 | 875 | 845 | 150 |
| LT530 | 745 | 875 | 845 | 150 |
Mounting Base
Consumption Estimation
| Property | Test Method | Conditions | Units | Value |
|---|---|---|---|---|
| Physical | ||||
| Densitiy | D-792 | g/cm3 | 1.2 | |
| Water Absorption | D-570 | 24 hr. @ 23°C | % | 0.15 |
| Mechanical | ||||
| Tensile Strength at break | D-638 | 10 mm/min | Mpa | 65 |
| Elongation at break | D-638 | 10 mm/min | % | >80 |
| Tensile Modulus of Elasticity | D-638 | 1 mm/min | Mpa | 2300 |
| Flexural Modulus | D-790 | 1.3 mm/min | Mpa | 2350 |
| Rockwell Hardness | D-785 | R scale | 125 |
| Property | Test Method | Conditions | Units | Value |
|---|---|---|---|---|
| Thermal | ||||
| Long Term Service Temperature | °C | |||
| Short Term Service Temperature | °C | |||
| Coefficient of Linear Expansion | D-696 | mm/m°C | 0.065 | |
| Thermal Conductivity | C-177 | W/mK | 0.21 |
browse what can be done using our products
Our diverse portfolio represents decades of experience backed by a passion for quality, outstanding client service, and the latest industry technologies.
Roof Skylight
Area
Roofing
Suggested Product
Vivid, ContiRoof, ContiVault, SkyDome
Material
Polycarbonate, GRP, Hybrid
Type
Corrugated, Structured MultiWall, Vaulted
Glazed Wall
AREA
Wall
SUGGESTED PRODUCTS
ContiWall, ContiRoof, Durapoll PS, Multipoll, Vivid PS,
MATERIAL
Polycarbonate, GRP
TYPE
Multiwall, Solid, Corrugated
quality products. inspired design.
unparalleled experience. exemplary service.
Common Questions & Answers
How does a Lumina tunnel perform at sunset or sunrise times?
- Lumina “Max Lighting” accessory can increase the solar capture when the sun goes down (winter solstice) and at sunrise and sunset.
- Lumina Aluminum tunnel/tube has a special highly reflective inner coating (almost perfect mirror), reflecting 99.7% of the sunlight, sending it to the inside of the building.
What makes Domer Lumina InLED ahead of competition?
- Highly efficient solar-powered kit, and long battery life expectancy.
- A light probe can be used that allows the best regulation of all light points, minimizing the electrical consumption of the installation.
- or MPCB (Metal Print Circuit Board) can be used instead with the optimized configuration, with a built-in heatsink, which can be regularly customizable. The MPCB is later coupled to the solar tube ring, optimizing thermal transfer and maximizing optical power.
What is the life expectancy of the solar powered battery?
High longevity battery, with a duration of more than 6 years in normal operation.
What Domer Lumina series come with remote controller?
All Lumina LED Kits are supplied with infrared remote control, allowing you to switch on, off, and program operation in various situations/functions.
